100ah Lithium Battery - Slimline Rockarmor 4x4
sku: RA12100-SLIM
Shop with a premium reseller
-
Aussie Offroad – Sydney
Check availability- AUS WIDE DELIVERY
- Installation
- Store pickup
-
Aussie Offroad – Brisbane
Check availability- AUS WIDE DELIVERY
- Installation
- Store pickup
-
RA Northern – Newcastle NSW
Contact store- Installation
- Store pickup
-
GT Offroad – Victoria
Contact store- Installation
- Store pickup
-
AOM Offroad – Perth WA
Contact store- Installation
- Store pickup
Check current availability on Aussie Offroad.
description

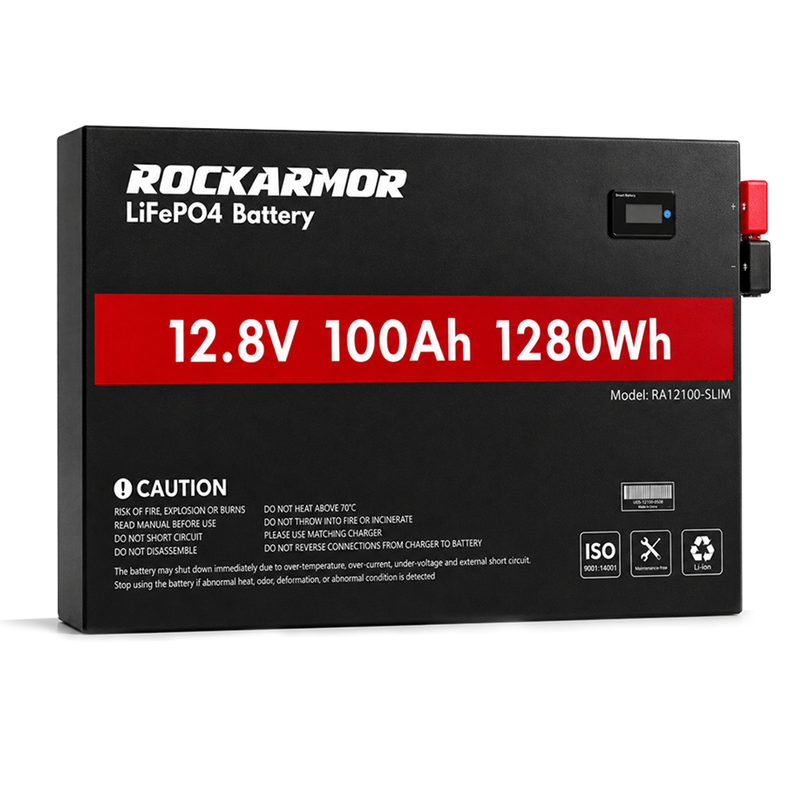

Slimline 100Ah Lithium Battery
Key Features
- 100Ah Lithium LiFePO4 Battery

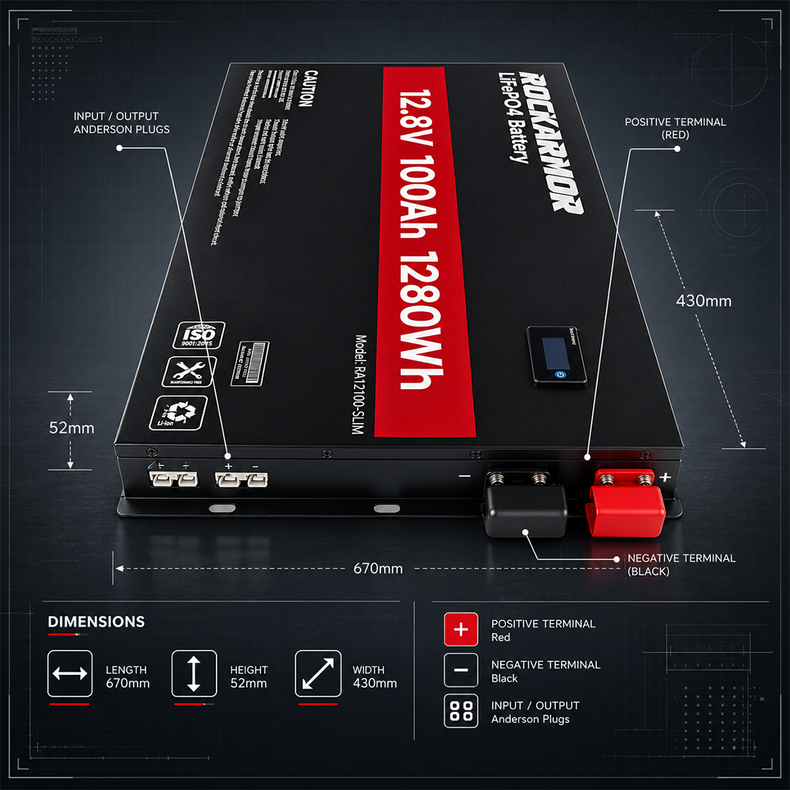

- 670L x 430W x 52H mm
- 1280Wh Usable Energy Capacity
- Slimline Low-Profile Design
- Built-In Bluetooth Battery Management System (BMS)
- Integrated LCD Display Screen
- Dual 50A Anderson Plug Outputs
- Heavy-Duty Cold Rolled Steel Mounting Bracket
- Suitable for 4WD, Caravan, Camper Trailer & Marine Applications
- Up to 100A Continuous Charge & Discharge Capability
Built for Touring, Camping & 12V Power Systems
The Rockarmor Slimline 100Ah Lithium Battery delivers reliable power in a compact, low-profile design, making it ideal for canopy installations, drawer systems, caravans, campers and dual battery setups. Featuring an integrated Bluetooth BMS, LCD display and dual Anderson outputs, this battery provides efficient power management and easy monitoring wherever your adventures take you.
Its slim dimensions allow for flexible mounting options while the heavy-duty steel mounting bracket ensures secure installation in demanding off-road environments.
Technical Specifications
| Specification | Details |
|---|---|
| Voltage | 12.8V |
| Capacity | 100Ah |
| Energy | 1280Wh |
| Weight | 16kg |
| Dimensions (with Bracket) | 670L x 430W x 52H mm |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 11V |
| Standard Charge Current | 20A |
| Max Charge Current | 100A |
| Max Discharge Current | 100A |
| Charge Temperature | 0°C to +45°C |
| Discharge Temperature | -20°C to +60°C |
| Storage Temperature | Recommended 0°C to 35°C |
| Built-In Bluetooth BMS | Yes |
| Series Connection | Up to 4 Batteries |
| Parallel Connection | Up to 4 Batteries |
| Battery Case Material | Cold Rolled Steel |
| Terminals | 2 x M8 Terminals |
| Anderson Ports | 2 x 50A Anderson Plugs |
| LCD Display | Yes |
